ATV RAT-02 Trailer​

Part #: 450-0017-GL



Price: $3,199 +HST

For more information, contact representative Jamison Reibeling:  519-291-6467

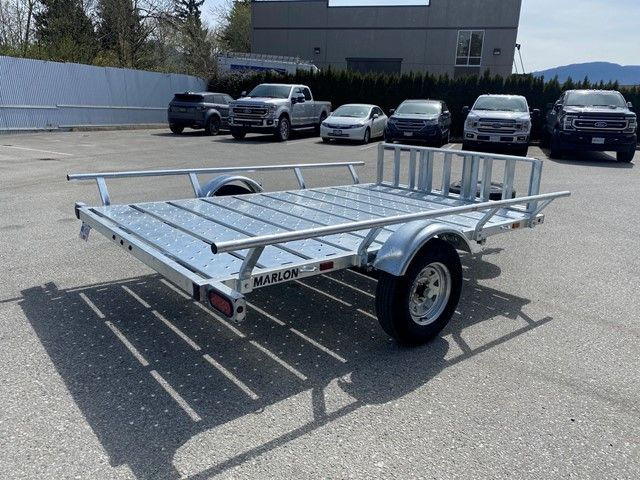

The Marlon RAT-02 is the upgraded version of our bestselling ATV/side-by-side trailer, designed for maximum durability and ease of use. Featuring a steel floor with punched grip for added traction, this trailer is perfect for loading and hauling with confidence. It includes two removable, self-storing expanded metal ramps that can be used for rear or side loading, offering flexibility for all types of vehicles. The heavy-duty, fully welded steel tube frame ensures strength, while the removable tubular sides provide added versatility. Equipped with a 2" hitch ball coupler and A-frame tongue, the RAT-02 also boasts a galvanized finish for long-lasting corrosion resistance.

Features:


  • A-frame tongue

  • Steel floor punch for added grip

  • 2" Hitch ball coupler

  • Galvanized finish

  • Rear load or 2 place ATV side load

  • Fully welded heavy duty steel tube frame

  • 2 Removable expanded metal heavy duty self storing loading ramps

  • Comes with removable tubular sides

  • Solid square tube straight axle w/ spindle 4.5 x 5 E-Z lube hub w/ zinc lugs and lug nuts

  • Tongue jack 1,200 lbs





Specifications:

​

  • GVW: 2500 lbs

  • Curb weight: 500 lbs

  • Payload capacity: 2000 lbs

  • Tire Size: ST175/80R13C

  • Bed dimensions: 9'4" Long x 6' Wide

  • A -frame tongue

  • Metal mesh floor

  • 2" Hitch ball coupler

  • Galvanized finish

  • Black Powder Coat available at our Alberta facility only

  • Rear load or 2 place ATV side load

  • Fully welded heavy duty steel tube frame

  • 2 Removable expanded metal heavy duty self storing loading ramps

  • Comes with removable tubular sides

  • Solid square tube straight axle w/ spindle 4.5 xs 5 E-Z lube hub w/ zinc lugs and lug nuts

  • Overall: 13'4" x 7'5"



​
